The excavation-based approach that addresses groundwater and hydrostatic pressure at the foundation exterior, not after it has already come inside.
Exterior foundation waterproofing is the only method that directly interrupts the path water travels from saturated soil to basement interior, and that interruption is made permanent through a combination of membrane application, drainage board installation, and footing pipe placement. The excavation required to accomplish this is substantial, involving the removal of soil from the surface to the footing elevation along the affected foundation sections. For most Hamilton homes, this means a trench four to eight feet deep depending on foundation type and depth, wide enough to allow membrane application and drainage board placement by the installation crew.

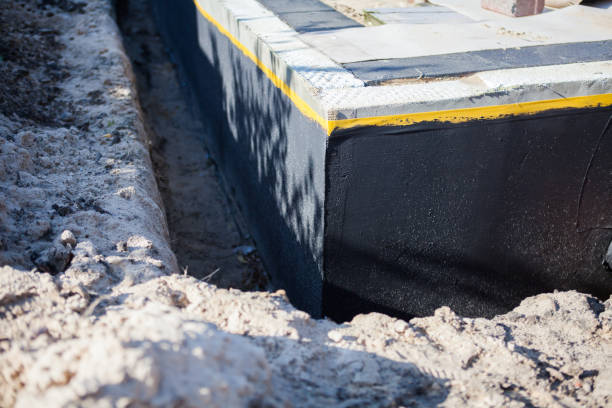

After full excavation, the foundation wall preparation phase determines how well the finished membrane performs over time. Our teams in Hamilton remove all loose material, clean efflorescence with appropriate treatments, and fill structural cracks before membrane application. This prep phase is not optional; applying membrane to an inadequately prepared surface creates adhesion failure zones where water can migrate behind the waterproofing layer. The rubberized membrane we specify for Hamilton applications is rated for continuous soil contact and maintains flexibility across the temperature range experienced in Hamilton, IL climates.
Drainage board, sometimes called dimple board or dimple mat, is installed over the cured membrane to create a capillary break between the waterproofed wall surface and the surrounding soil. This profiled plastic sheet holds the soil away from the membrane surface and channels any water that migrates through the soil downward to the footing drain rather than allowing it to accumulate against the wall. The dimple profile creates a continuous air gap that eliminates the direct hydraulic contact between saturated soil and the foundation surface. At the base of the excavation, a perforated footing drain pipe is laid in a gravel bed alongside the footing, collects the water directed downward by the drainage board, and conveys it to daylight or to a sump pit inside the structure.
Seasonal timing for exterior waterproofing in Hamilton is often a question homeowners raise during the assessment. While spring and fall are typically optimal in Hamilton, IL climates for this type of work, late summer installations are also common and effective when the excavation conditions and membrane cure windows align. We monitor extended forecasts when scheduling exterior projects and build adequate cure time into the project timeline before backfill begins. Winter work is evaluated on a case-by-case basis depending on frost depth, ground conditions, and the urgency of the moisture problem. We are transparent about seasonal limitations and advise homeowners accurately rather than scheduling work that conditions do not support.
When advising Hamilton homeowners on exterior versus interior approaches, we document specific evidence of water entry mechanism: wall seepage at mid-height indicates hydrostatic pressure against the exterior wall surface, which exterior waterproofing directly resolves. Water entering at the floor-wall joint is typically addressed by interior drainage. Many older Hamilton homes show both conditions simultaneously, and a combined approach treating the exterior walls while installing perimeter interior drainage is sometimes the most comprehensive solution. We explain the evidence and the logic behind every recommendation so homeowners can make informed decisions about their specific structure.
Quality you can see in the materials and the workmanship.
Our crews handle complete foundation excavation to footing depth, not just surface-level treatments. Every project in Hamilton is fully exposed before any membrane is applied.
The membrane we specify is rated for continuous soil contact, remains flexible across Hamilton, IL temperature ranges, and bridges existing micro-fissures in the foundation surface.
We stand behind the work we perform in Hamilton with written documentation of what is covered, for how long, and how to make a claim if needed.
Complete exterior foundation protection from excavation through backfill.
Complete excavation, membrane application, drainage board installation, and footing pipe for the full foundation perimeter. The comprehensive solution for persistent moisture intrusion in Hamilton homes.
Learn moreWe document which sections show evidence of active moisture entry and design targeted scopes that address the actual problem areas rather than defaulting to full perimeter work where it is not needed.
Get an assessmentOriginal factory-applied exterior waterproofing coatings on most Hamilton homes from the 1970s through 1990s have reached the end of their effective service life. Re-application restores protection without the cost of a new foundation.
Schedule a reviewThe footing pipe and drainage board are the components that keep the membrane working as designed by eliminating hydrostatic pressure buildup at the wall base.
Learn about drainageWindow well issues are often treated as separate from the main waterproofing project, but connecting wells to the perimeter drainage system creates a cohesive exterior moisture management approach.
Address window wellsProper grading at the completion of backfill is the last line of exterior defense. We verify slope direction and distance from the foundation before leaving every project site.
See full scopeFrom assessment to restored landscape, four stages that deliver permanent basement protection.
We evaluate the exterior conditions, identify moisture entry points, and document wall condition to design the right scope for your Hamilton home.
Full excavation to footing depth along affected wall sections exposes the foundation surface for prep and membrane work. All excavated material is staged for controlled backfill.
Each phase is inspected before the next begins to ensure material performance is not compromised by sequencing shortcuts.
Backfill is compacted in lifts to prevent future settlement and voids. Final grade is set to direct surface water away from the foundation at the correct slope.
Words from customers after their first full wet season with exterior waterproofing in place.
We had tried interior drainage twice over the years and always ended up with some seepage after heavy rain. The exterior excavation and membrane work addressed the actual wall surface and we went through the wettest spring in years without a drop of water in the basement. The crew was professional and cleaned up the yard completely.
I appreciated that they were honest about what exterior waterproofing can and cannot solve. They did not oversell it as a universal fix but explained specifically why it was the right approach for my particular moisture pattern. That kind of honesty builds trust.
The window well drainage connection they added during the project solved a secondary problem I had been ignoring for years. The well used to fill and drain slowly through the window frame during storms. Connecting it to the perimeter footing pipe eliminated that entirely.
No vague promises, just accurate information about what exterior waterproofing delivers.
Excavation disruption is real and should be factored into the project decision. Our assessment walks around the full perimeter to document every item in the excavation zone and note which plants, structures, or materials are at risk. Homeowners who want to preserve specific plantings can arrange for a landscaper to relocate them before excavation begins. We restore the grade and clean the site thoroughly, but landscape features within the trench footprint are unavoidably affected by the process.
The comparison is not simply about which approach is better in the abstract; it is about which approach addresses the specific moisture entry mechanism present in your Hamilton home. Wall seepage that stains the middle of the block, migrates through cracks, or appears after saturation events is the profile that exterior waterproofing resolves most definitively. Floor-joint entry or seepage that follows the perimeter at the floor level responds better to interior channel systems. When both conditions are present, a combined approach is sometimes the most complete solution.
{Quality exterior waterproofing using modern rubberized membrane systems can protect a foundation for 20 to 30 or more years when properly installed on a well-prepared surface. The original factory-applied bituminous coatings used on homes built through the 1980s typically had a design life of 10 to 15 years under favorable soil conditions. Modern rubberized membrane materials are substantially more durable, maintain flexibility under soil movement and temperature cycling, and retain adhesion over extended periods. The key variable in longevity is surface preparation quality and membrane thickness applied; underprepared substrates and thin single-pass applications consistently underperform.|Longevity depends on the membrane product specified, surface prep quality, and subsequent drainage board and footing pipe function. When drainage board is properly installed and the footing pipe remains clear and functional, the membrane experiences minimal hydrostatic load because water is redirected before it can accumulate against the wall surface. Regular inspection of the exterior grade around the foundation and the footing drain outlet ensures the drainage system continues to function as designed over the years.}
Winter exterior waterproofing in Hamilton, IL is constrained by frost depth, ground freeze conditions, and membrane cure temperature requirements. Most rubberized membrane products have a minimum application temperature specification, typically around 40 degrees Fahrenheit, and require the substrate to be above that temperature during application and cure. In mid-winter conditions, achieving this without specialized temporary enclosure equipment is not reliable, and we do not schedule exterior membrane application when conditions do not support proper cure. In early winter before frost depth becomes prohibitive, or in late winter during extended mild stretches, work may be feasible depending on specific site conditions.
Landscaping impact is real but temporary for most items. Lawn areas typically recover within one to two growing seasons after backfill and reseeding. Established shrubs that are carefully relocated before excavation can be successfully replanted in the same beds after completion. Large mature trees within the excavation zone require a separate arborist evaluation to determine whether root disruption at excavation depth would pose a risk to the tree's health. We document these considerations clearly during the assessment.
We do not quote specific ROI percentages because every home and every market is different. What we do is document the specific risks of continued moisture intrusion in your Hamilton home and provide a clear picture of what exterior waterproofing addresses versus what it does not. Homeowners who understand both the protection provided and its limitations are consistently more satisfied with their investment than those who received oversimplified answers.
Our exterior waterproofing teams are experienced in Hamilton, IL foundation conditions. Call today for an honest assessment of whether exterior treatment is right for your specific situation.
